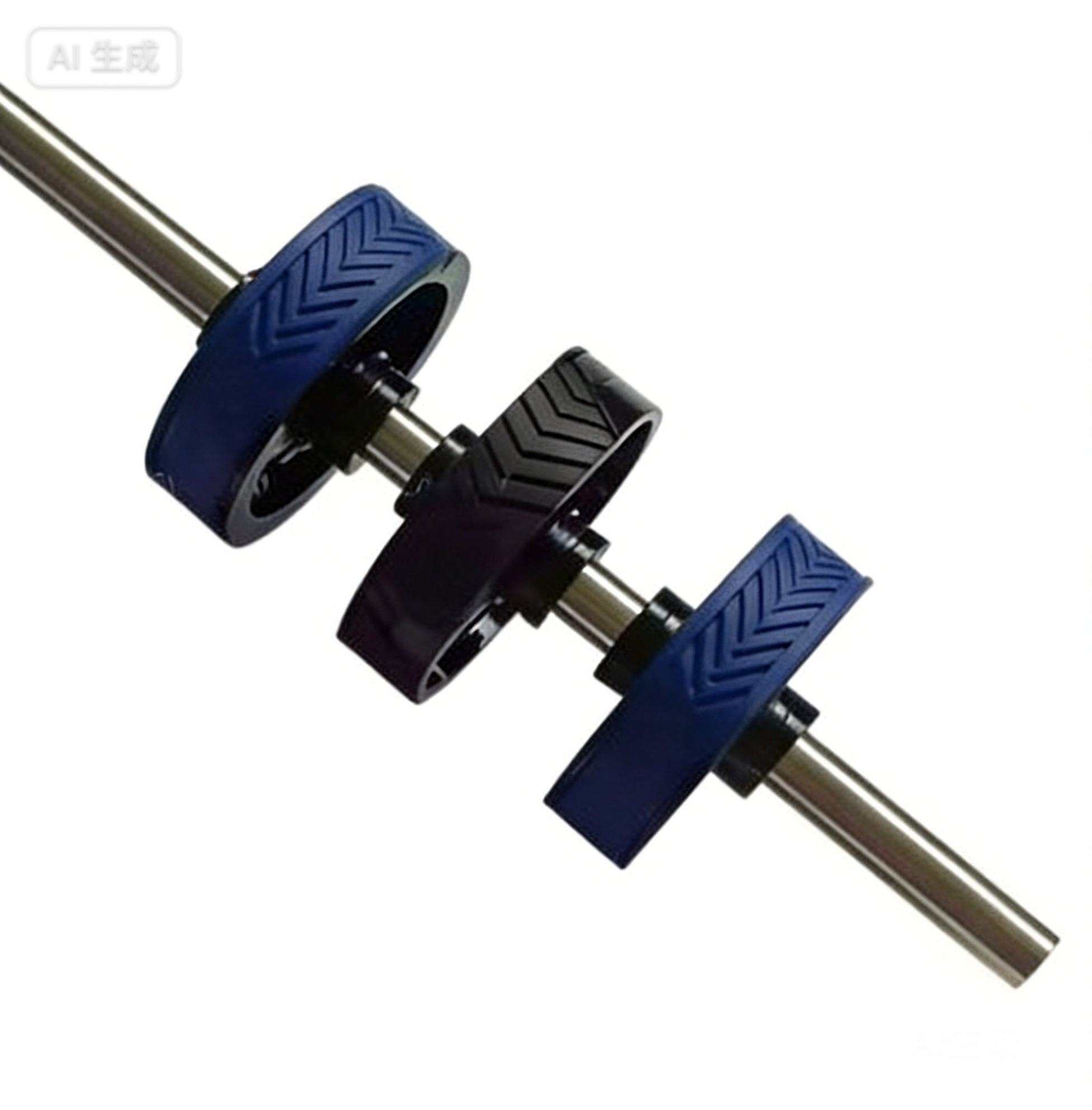

Diebold 49009303000A — Feedshaft Overmold Assembly for Opteva / DN Series
Place of Origin:
Model Number:
Diebold 49009303000A — Feedshaft Overmold Assembly for Opteva / DN Series. Diebold ATM spare part. In stock, ships worldwide.
Supplier: Guangzhou MicroLinkpro Technology Co.,Ltd
Telephone: (+852-93572135) , Max Liu
Email: linda.zhou@microlinkpro.com
Address:201,A12 Building, Dongjin Logistics Park No. 39 Chenjialin Road, Nan'an 511340 Xintang Zengcheng District Guangzhou City, G.D, P.R.China
PN: 49009303000A (49-009303-000A)
Brand: Diebold Nixdorf
Category: Dispenser Feed Mechanism
Condition: NEW (Original) / REBUILT / Refurbished Available
What This Part Does
Every time an ATM dispenses cash, the feedshaft rotates. Its rollers grip the top note in the cassette and push it into the transport path. The overmold provides the rubberized grip surface that makes contact with the bill.
Over hundreds of thousands of cycles, the rubber overmold wears smooth. Grip drops. Notes start slipping instead of feeding. The ATM reports a dispense failure — but the real problem is a feedshaft that can no longer grab.
This is the complete feedshaft overmold assembly for Diebold Opteva and DN series dispensers. Factory-direct replacement. Drop-in fit.
Technical Specs
| Parameter | Detail |
| Part Number | 49009303000A (also listed as 49-009303-000A) |
| Brand | Diebold Nixdorf |
| Type | Feedshaft Overmold Assembly |
| Function | Note pickup and feed from cash cassette |
| Material | Steel shaft with molded rubber grip surface |
| Weight | ~0.4 kg |
| Condition | NEW Original / REBUILT (re-molded in-house) / Refurbished |
Compatible Models
Diebold Opteva 520, 560, 720, 740, 760
Diebold DN 100, DN 150, DN 200 series
Diebold Nixdorf DN 250, DN 400, DN 450 series (dispenser module)
Signs You Need a Replacement
ATM reporting repeated "note failed to feed" errors on the same cassette position
Visible wear, flattening, or cracking on the rubber overmold surface
Intermittent pickup — some notes feed, some slip
Feedshaft rotates but no note moves (total grip loss)
Preventive replacement at 500,000+ cycle count
Why Buy From MicroLinkpro
We do not just resell this part. We remanufacture it. When the rubber overmold wears out, most suppliers tell you to buy a new assembly. We strip the shaft, re-mold the grip surface to factory durometer specs, and bench-test it in a live Diebold dispenser module. Same grip. Same feed rate. Half the cost of OEM.
Our factory in South China runs CNC machining, injection molding, and dedicated ATM test benches. This is what we do every day.
Ordering Info
| Option | Condition | Warranty |
| NEW (Original) | Factory-sealed Diebold OEM part. Direct from our supply chain. | 12 months |
| REBUILT (Made in China) | Original shaft. New overmold grip applied in our facility. Tested on Diebold dispenser bench. | 12 months |
| Refurbished | Used assembly. Cleaned, inspected, grip surface verified above minimum spec. Budget option. | 6 months |
Frequently Bought Together
| PN | Description | Why |
| 49204018000D | Opteva Feedshaft OVRMLD | Multi-cassette machines have multiple feedshafts. Replace all at once. |
| 49260550000A | Shaft Pinch Roller | Works in pair with the feedshaft. If the feedshaft is worn, the pinch roller usually is too. |
| 49209540000D | Diebold Card Reader | Card reader and dispenser are the top two failure points on Opteva machines. |
Related Parts We Stock
| PN | Description |
| 49204018000D | Opteva Feedshaft OVRMLD (variant) |
| 49007456000A | Opteva Feedshaft Assembly (alternate) |
| 49260550000A | Diebold Shaft Pinch Roller |
| 49208102002M | Diebold CCA Board |
Shipping & Warranty
Lead Time: 1-3 business days (in stock)
Shipping: DHL / FedEx / UPS worldwide
Warranty: 12 months against manufacturing defects
Bulk Orders: Discount available for 5+ units
Request a Quote
linda.zhou@microlinkpro.com
WhatsApp: +852-93572135
Include part number and quantity. We respond within 12 hours.
Technical team with 23 years of ATM engineering expertise.
Author: MicroLinkpro Technician Team
Reviewed by: Max Liu, CTO (23 years ATM engineering)
Last updated: 2026-08-19
Frequently Asked Questions
Is this an OEM original part or aftermarket?
We supply both new OEM-grade and professionally rebuilt units. Every part is tested before shipping. If you need a specific grade (new, rebuilt, or refurbished), mention it when requesting a quote.
What warranty do you provide?
12 months against manufacturing defects on NEW and REBUILT units. Refurbished units go through full functional testing and cleaning before dispatch.
Do you ship to my country?
Yes. We ship worldwide via DHL, FedEx, and UPS. Typical lead time is 1–3 business days after payment confirmation. We regularly ship to Southeast Asia, the Middle East, Africa, and Eastern Europe.
How do I confirm this part fits my ATM?
Check your machine's service manual for the part number. Send us your ATM model and serial number — our technical team (23 years of ATM engineering experience) will confirm compatibility within 12 hours.
What is the minimum order quantity?
1 unit. Bulk discounts available for 5+ units. Contact us for volume pricing.
How quickly can I get a quote?
We respond within 12 hours. Include the part number and quantity in your inquiry. WhatsApp (+852-93572135) for urgent requests.
What symptoms mean this part needs replacement?
See the "Signs You Need a Replacement" section above for the specific symptoms. If you're unsure, send us the symptoms and your machine model — we'll help you diagnose before you order.
Which ATM models does this part fit?
See the "Compatible Models" section above. If your model isn't listed, send us your machine type and serial number — we'll confirm fitment within 12 hours.
